RadMini 4
Electric Folding Fat Bike
Top Speed
Geared Hub Motor
Kilometers per Charge (estimate)
Lithium-Ion Battery
Payload Capacity
Total Weight (incl. battery)
ASK AN EXPERT
Our expertly trained Customer Experience team is here to help.
+31 85 7470430 | +44 800 069 8513 (UK Toll Free)
Most popular accessories
Front-Mounted Basket
€79,00
Reflective Safety Sticker
€9,00
Premium Headlight
€49,00
RadMini Rear Rack
€79,00
The Rugged Space Saver
Don't let the "mini" in its name fool you. Sure, the RadMini can quickly fold when you need some extra room, but this ebike packs quite a punch when you're ready for action. Strong construction, high-torque battery power, and advanced components, including a 7-speed gear range and an integrated brake light, add great value to this unique €1.599 foldable ebike.
Technical specs

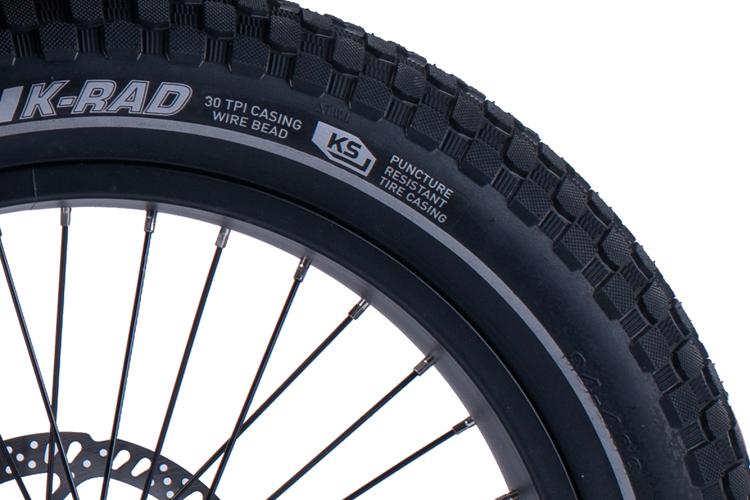

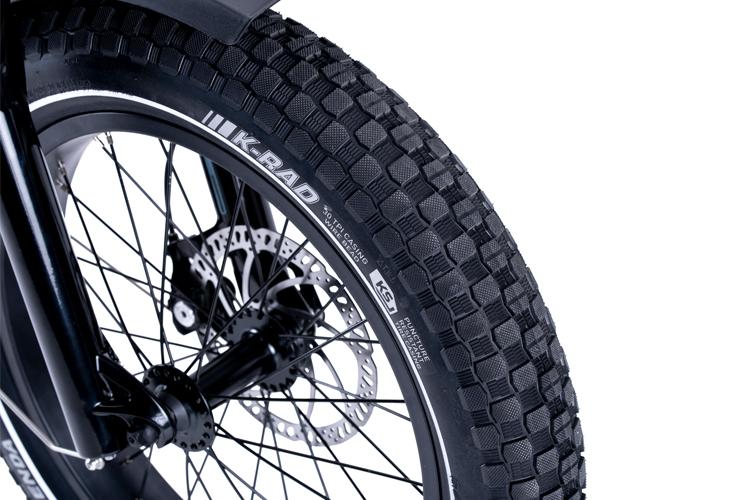

Puncture-Resistant Tires
The integrated tire liner is a line of defense designed to provide extra protection against punctures from thorns, glass, and other small materials.

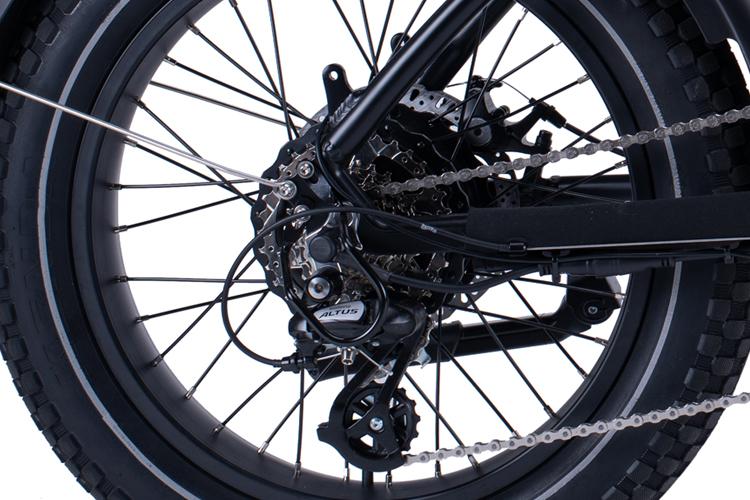

7-Speed, 11-34 Tooth Freewheel
A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintain pedal authority at top speed.
Front and Rear Fenders
Included front and rear fenders made from durable PVC and stainless-steel hardware help protect you from the elements
Integrated Brake Light
Powered using the main battery pack and features brake light functionality that is activated any time the brakes are applied.
Robust Hinge Mechanism
The primary folding hinge has multiple safety redundancies to help prevent accidental unlatching and ensure the RadMini feels solid and secure when locked properly.

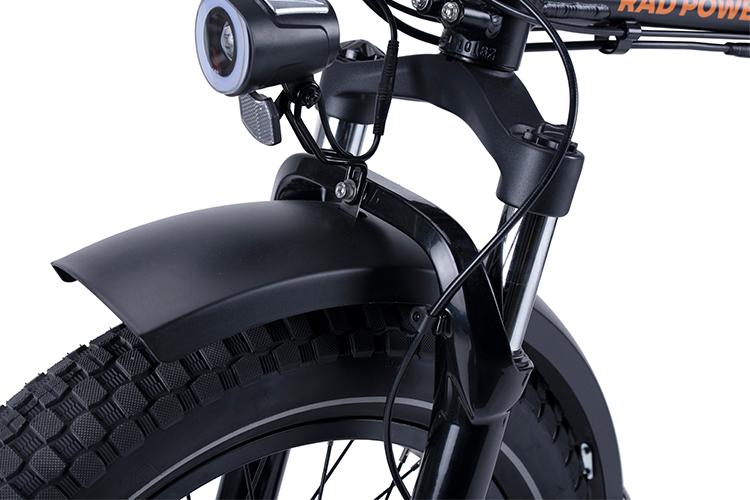

Front Suspension Fork
Our custom Rad Power Bikes RST suspension fork has 80 mm of travel, preload adjustment, and lockout.
Twist Power Assist
Half grip twist power assist up to 6km/h without pedaling
Folding, Telescoping Handlebar Stem
Raise or lower the handlebar stem to your desired comfort level and take advantage of the folding hinge to make the RadMini as small as possible for storage.
48V, 14 Ah (672 Wh) with Lithium NMC Samsung 35, rated for 800 charge cycles
Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on 230V AC power outlets
Controller
48V, 250W
Display
Backlit LCD with charge indicator, speedometer, odometer, trip odometer, pedal assist level, and more
250W Geared Motor
Lights
Front: Rad Power Bikes branded standard LED
Rear: Integrated Taillight with Brake Light Indicator Functionality
Pedal Assist
Intelligent 5 level pedal assist with 12 magnet cadence sensor
55-88+ kilometers per charge (estimate)
Throttle
Half grip twist power assist up to 6 km/h without pedaling
Wiring
Water resistant connectors and wiring harness
USB Ports
Display: 5V, 1 Amp
Tektro Aries (MD-M300)
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch
Brake Pad Material
Sintered metal
Brake Rotors
Tektro 180 mm front and rear
Chain
KMC Z7 Rustbuster
Crank Set
48T, 170 mm ProWheel Pioneer forged alloy, dual-sided aluminum bashguard
Derailleur
7-Speed Shimano Acera
Fenders
Full coverage front and rear
Fork
RST Suspension Fork with 60 mm of Travel, Preload Adjustment, and Lockout
6061 Aluminum alloy
Freewheel
DNP 7-speed freewheel, 11-34T
Gearing
1 x 7-speed
Grips
Durable imitation leather ergo
Handlebar
Custom formed aluminum, 25" wide, 2.5" rise
Headset
Semi-integrated, 1-1/8" straight steerer tube
Kickstand
Heavy-duty aluminum with wide plastic foot
Pedals
Wellgo P256 CrMo axle, forged aluminum folding platform with reflectors
Racks
Rear: Optional
Front: Optional
Double wall, 36H
Saddle
Velo Plush with lifting handle
Seatpost
Promax, 350 mm x 27.2 mm
Seatpost Clamp
Quick release
Shifter
Shimano SL-TX50-7R thumb shifter, 7-speed
Spokes
12-gauge stainless steel, black
Stem
High-rise folding stem with 3" vertical adjustment
Tires
CST Big Boat 20” x 3”, puncture-resistant liner
157 cm - 188 cm
Frame Size
410mm
Handlebar Height
1143 mm - 1219 mm (adjustable)
Handlebar Reach
356 mm
Seat Height
673 mm - 889 mm
*Measured from bottom of the pedal stroke
Standover Height
698 mm
Total Length
1727 mm
1140 mm
Dropout Width
Front: 135 mm
Rear: 170 mm
Bottom Bracket Shell Width
100 mm
Square Taper Bottom Bracket
Seat Tube Length
410 mm
Top Tube Length (effective)
584 mm
Headtube
120 mm
Chainstay
458 mm
660 mm (26")
Crank Length
170 mm
Seatpost Diameter
27.2 mm
Max Tire Width
4"
Bike Weight
27 kg
Payload Capacity
125 kg
Folded Dimensions (LxWxH)
104 cm x 55 cm x 71 cm
What to Measure
Your “real inseam” -- or inside leg length -- is the distance between your body where it sits on your bike saddle and the ground.
This will typically be an inch or two longer than the length of your trousers, but you’ll want to measure to be sure.
You’ll use this number on the chart to get a feel for how the different models will fit you.
How to Measure
Gather the tools needed:
- Medium-width hardcover book
- Tape measure
- A wall you can stand against
- A trusted friend or relative
Wearing your regular riding shoes and with your back to the wall, stand with your feet spread so there is about 7 inches between them - this is about the distance apart your feet would be when straddling a bike with your feet on the ground (standover height).
Place a hardcover book against the wall with the spine of the book facing upward. Slide the book upwards towards your groin until it is solidly against your body. This may be a bit awkward, but is way more comfortable -- and safer! -- than trying to ride a bike that is too big.
If you have a buddy helping you, get them to measure from the floor to the top of the book spine while you hold the book in place. If you’re going it alone, carefully hold the book in place and measure from the ground to the top of the book spine.
-v1604671559962.jpg?1500x1000)

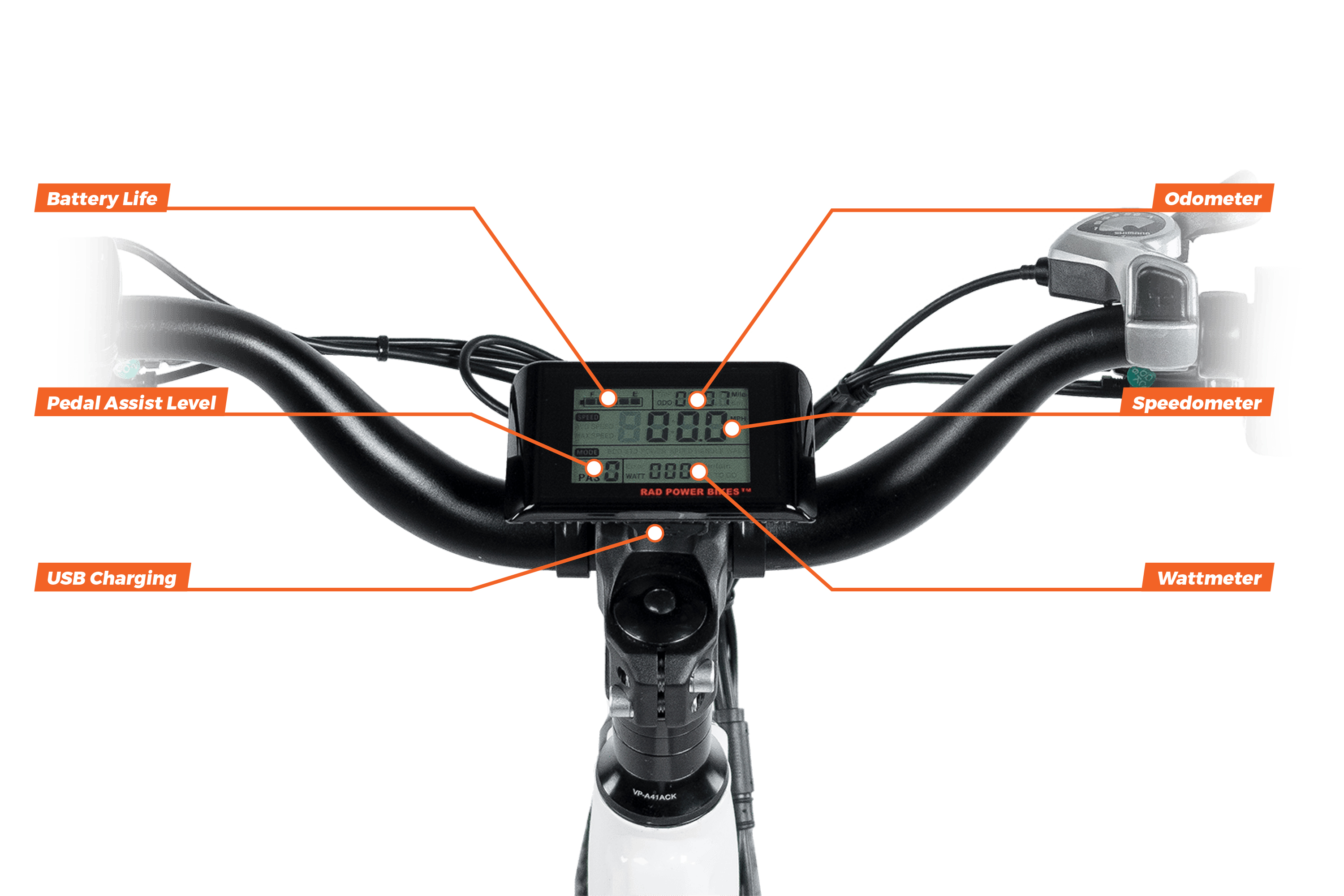

A fuel gauge for your electrons.
Pedal Assist Level
The higher the number, the more the motor will boost you when you pedal.
USB Charging
5V, 1 Amp port to charge your phone or portable electronics on the go.
Calculate how many miles you didn't drive this year and how much money you saved on gas.
Speedometer
Can be set to current speed, max speed, or average speed.
Wattmeter
Shows how much power the motor is outputting at any given time.
The Rad Battery Pack
With over a decade of designing and building ebikes under our belts, we know that a high-capacity battery like this isn’t something you cheap out on. We designed and built our batteries using genuine Samsung 35E cells, which are some of the most energy-dense and reliable lithium-ion cells on the market today. These cells have allowed us to build an overall better battery, and at only 3.5 kg, it's one of the lightest and most energy-dense packs on any electric bike.
Kilometers per Charge
To Fully Charge
Total Battery Capacity
Powerful, Effective Geared Hub Motor
With 250W and 80 Nm of torque at your disposal, this geared hub motor is what is going to help power you up steep inclines and get you up to top speed quickly from a dead stop, all while remaining quiet and inconspicuous. These kinds of numbers aren't even found on some of the most expensive mid drive systems out there, so prepare to outperform and outclass everyone you see on the road.
Motor Power
Max Motor Torque
